Serialization Types¶

Unity-friendly wrappers for complex data.

Unity Helpers provides serializable wrappers for types that Unity can't serialize natively: GUIDs, dictionaries, sets, type references, and nullable values. All types include custom property drawers for a consistent inspector experience and support JSON/Protobuf serialization.

Table of Contents¶

• WGuid
• SerializableDictionary
• SerializableHashSet & SerializableSortedSet
• SerializableType
• SerializableNullable
• SerializableValueTuple
• Best Practices
• Examples

WGuid¶

Immutable version-4 GUID wrapper using two longs for efficient Unity serialization.

Why WGuid?¶

• Problem: Unity doesn't serialize System.Guid directly
• Solution: WGuid stores as two long fields (_low and _high) for fast Unity serialization

Performance:

• 2x faster serialization than string-based GUID storage
• Smaller memory footprint (16 bytes vs. 36 bytes for string)
• Immutable design prevents accidental modification

Basic Usage¶

1
2
3
4
5
6
7

using UnityEngine;
using WallstopStudios.UnityHelpers.Core.DataStructure.Adapters;

public class Entity : MonoBehaviour
{
    public WGuid entityId = WGuid.NewGuid();
}

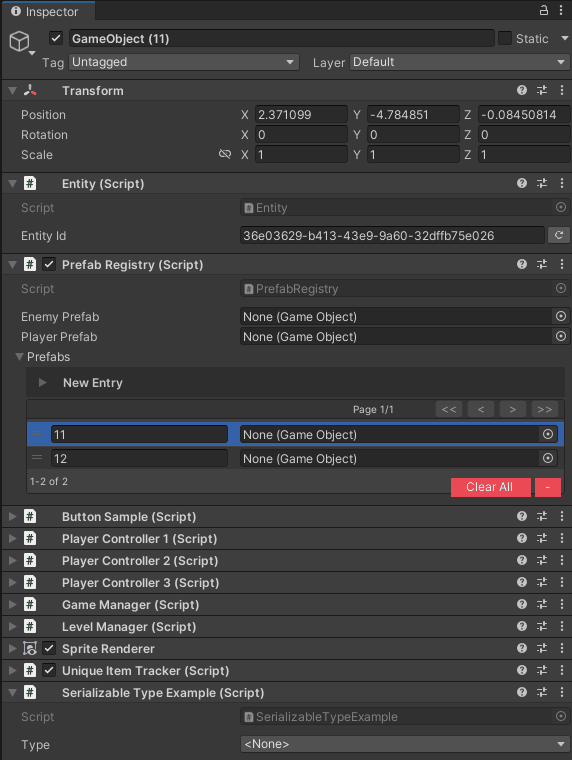

Visual Reference

Creating GUIDs¶

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18

// Generate new GUID
WGuid id1 = WGuid.NewGuid();

// From System.Guid
System.Guid sysGuid = System.Guid.NewGuid();
WGuid id2 = (WGuid)sysGuid;

// Parse from string
WGuid id3 = WGuid.Parse("12345678-1234-1234-1234-123456789abc");

// Try parse (safe)
if (WGuid.TryParse("...", out WGuid id4))
{
    Debug.Log($"Parsed: {id4}");
}

// Empty GUID
WGuid empty = WGuid.EmptyGuid;

Inspector Features¶

Custom Drawer:

• Text field displays GUID in standard format
• "Generate" button creates new GUID
• Validation warns if GUID is not version-4
• Undo/redo support

Conversions¶

1
2
3
4
5
6
7
8

// WGuid <-> System.Guid
WGuid wguid = WGuid.NewGuid();
System.Guid sysGuid = wguid.ToGuid();
WGuid back = (WGuid)sysGuid;

// ToString() formats
string standard = wguid.ToString();  // "xxxxxxxx-xxxx-xxxx-xxxx-xxxxxxxxxxxx"
string formatted = wguid.ToString("N");  // Without hyphens

Equality & Comparison¶

1
2
3
4
5
6
7
8
9

WGuid id1 = WGuid.NewGuid();
WGuid id2 = id1;

// Implements IEquatable<WGuid>
bool equal = id1.Equals(id2);  // true
bool opEqual = id1 == id2;     // true

// Implements IComparable<WGuid>
int comparison = id1.CompareTo(id2);  // 0

Serialization Support¶

• Unity: Serialized as two long fields
• JSON: Serialized as GUID string
• Protobuf: Serialized as two long fields

1
2
3
4
5
6
7
8

using ProtoBuf;

[ProtoContract]
public class SaveData
{
    [ProtoMember(1)] public WGuid playerId;
    [ProtoMember(2)] public WGuid sessionId;
}

SerializableDictionary¶

Unity-friendly dictionary with synchronized key/value arrays and custom drawer.

Why SerializableDictionary?¶

• Problem: Unity doesn't serialize Dictionary<TKey, TValue>
• Solution: SerializableDictionary<TKey, TValue> maintains synchronized arrays for Unity serialization and a runtime dictionary for fast lookups

Basic Usage¶

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36

using UnityEngine;
using WallstopStudios.UnityHelpers.Core.DataStructure.Adapters;

public class PrefabRegistry : MonoBehaviour
{
    public GameObject enemyPrefab;
    public GameObject playerPrefab;

    public SerializableDictionary<string, GameObject> prefabs;

    private void Start()
    {
        // Access entries
        if (prefabs.TryGetValue("Enemy", out GameObject prefab))
        {
            Instantiate(prefab);
        }

        // Count
        Debug.Log($"Prefab count: {prefabs.Count}");

        // Iteration
        foreach (var kvp in prefabs)
        {
            Debug.Log($"{kvp.Key}: {kvp.Value}");
        }

        /*
            Add entries (or overwrite)
            WARNING: This is just for demo purposes! SerializableDictionary is meant for editor-mode persistence.
            Nothing stops you from changing this at runtime, but it will be lost on next playthrough.
        */
        prefabs["Player"] = playerPrefab;
        prefabs["Enemy"] = enemyPrefab;
    }
}

Inspector Features¶

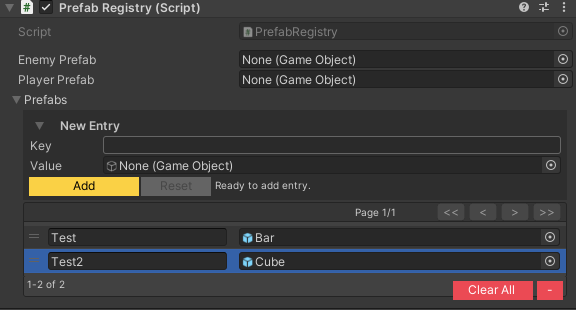

Visual Reference

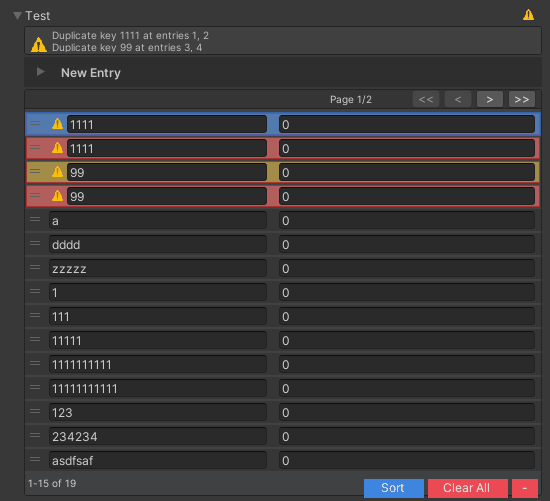

Dictionary inspector showing key-value pairs with pagination and inline editing

Custom Drawer:

• Key/value pair editing
• Add/Remove buttons
• Reorderable list

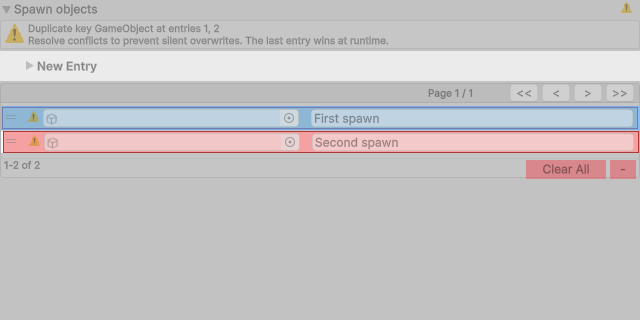

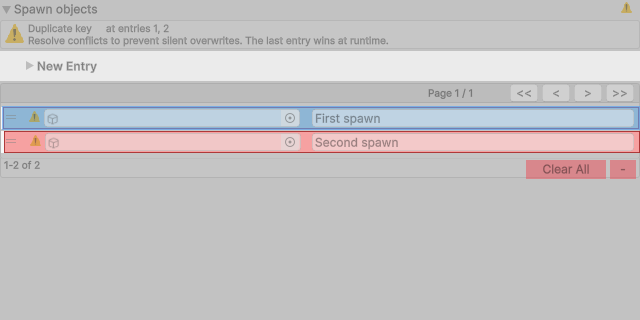

• Duplicate key detection (visual warning)
• Null value highlighting
• Pagination for large dictionaries

Dictionary Operations¶

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28

// Implements IDictionary<TKey, TValue> and IReadOnlyDictionary<TKey, TValue>
SerializableDictionary<int, string> dict = new();

// Add
dict.Add(1, "One");
dict[2] = "Two";

// Read
string value = dict[1];
bool exists = dict.TryGetValue(2, out string val);
bool contains = dict.ContainsKey(1);

// Update
dict[1] = "First";

// Remove
dict.Remove(1);
dict.Clear();

// Iteration
foreach (KeyValuePair<int, string> kvp in dict)
{
    Debug.Log($"{kvp.Key} = {kvp.Value}");
}

// Keys/Values collections
ICollection<int> keys = dict.Keys;
ICollection<string> values = dict.Values;

Specialized Dictionaries¶

1
2

// Sorted dictionary (maintains key order)
public SerializableSortedDictionary<int, string> sortedDict;

Note: SerializableSortedDictionary uses SortedDictionary<TKey, TValue> internally for ordered keys.

Collection Values¶

A dictionary whose value type is itself a collection just works. No wrapper type, no cache subclass, no consumer change:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16

public sealed class WeaponConfig : MonoBehaviour
{
    [SerializeField]
    private SerializableDictionary<string, List<float>> _curves = new();

    public void AddPoint(string weapon, float damage)
    {
        if (!_curves.TryGetValue(weapon, out List<float> curve))
        {
            curve = new List<float>();
            _curves[weapon] = curve;
        }

        curve.Add(damage);
    }
}

This holds for List<T> and T[] values, on both SerializableDictionary and SerializableSortedDictionary.

How it works, and why your existing assets are unaffected¶

Unity does not serialize a nested collection: the serialized values array would be a List<float>[], which Unity drops entirely, while the parallel keys array survives because it is a plain string[]. Rather than asking you to change the value type, the dictionary writes those values to a second serialized array whose elements are one-field boxes (the indirection Unity wants) and unpacks them on load.

That second array is populated only for value types Unity would otherwise drop. Every other dictionary keeps storing its values exactly where it always did, so no existing data is rewritten and assets written by this version stay readable by older package versions. Because a serialized field cannot be declared conditionally, dictionaries do gain one empty array in their serialized form; the first save after upgrading adds that line to affected assets and nothing else.

Nesting these inside each other¶

A serializable collection whose value or element is another serializable collection type has never needed any of this, and still does not:

1
2
3

// All fine, no wrapper and no box involved.
SerializableDictionary<string, SerializableDictionary<int, float>> byRegion;
SerializableHashSet<SerializableDictionary<int, float>> variants;

The reason is the same one the boxing exploits: SerializableDictionary<int, float> is a [Serializable] class, and Unity has always accepted a class as an array element. Only a raw List<T> or T[] in that position is refused, and that is exactly the case the boxing now covers, so the two mechanisms compose:

1
2

// Boxed because the value is a raw List<>, and its elements nest normally inside the box.
SerializableDictionary<string, List<SerializableDictionary<int, float>>> curvesByRegion;

The depth limit is Unity's, not this package's. Unity stops descending after a fixed number of nesting levels and warns rather than saving the remainder, and each dictionary in a chain costs roughly two of those levels. Three dictionaries deep is covered by tests; arbitrarily deep recursion is not something a wrapper can rescue, so if you find yourself approaching it, flatten the data: a composite key is usually the answer:

1
2
3
4

public enum RegionTierKey { NorthBronze, NorthSilver, SouthGold }

// Instead of Dictionary<A, Dictionary<B, Dictionary<C, V>>>
SerializableDictionary<RegionTierKey, float> byRegionAndTier;

Sets are different¶

SerializableHashSet<List<T>> still reports the shape as unsupported. That is deliberate rather than pending: List<T> has reference equality, so a set of lists treats two lists with identical contents as two distinct elements, and deserializing one never reproduces the set you saved. Use SerializableHashSet<SerializableList<T>> only if you genuinely want identity semantics: the wrapper serializes, but it declares no value equality either, so Contains on a restored set is still false for an equal-content list. Otherwise the element type is the thing to reconsider.

SerializableSortedSet<List<T>> does not arise at all: SerializableSortedSet<T> constrains T : IComparable<T>, and List<T> does not implement it, so the declaration is a compile error rather than something the Inspector has to report.

SerializableList<T> remains available and is still the right choice when you want a list that draws and serializes on its own, outside a dictionary. It implements IList<T>, converts implicitly to and from List<T>, and exposes AsList() for the List<T> members it does not surface (Sort, BinarySearch). It draws in the Inspector as the list it wraps, with no extra foldout, and serializes to a plain JSON array.

Value types that are still unsupported¶

Interfaces, abstract types, Dictionary<,>, and classes without [Serializable] cannot be serialized by Unity in any container, so no wrapper repairs them. The Inspector reports those as an error rather than drawing a value column that persists nothing, so it is visible while authoring instead of at runtime.

The three-argument cache form is still supported for a value type you want to route explicitly:

1
2
3
4
5
6

[Serializable]
public sealed class FloatListCache : SerializableDictionary.Cache<List<float>> { }

[Serializable]
public sealed class DamageCurves
    : SerializableDictionary<string, List<float>, FloatListCache> { }

Serialization Support¶

• Unity: Synchronized _keys and _values arrays
• JSON: Standard dictionary format
• Protobuf: Supported via surrogates

1
2
3
4
5
6
7

// JSON example
{
    "prefabs": {
        "Enemy": { "instanceId": 12345 },
        "Player": { "instanceId": 67890 }
    }
}

SerializableHashSet & SerializableSortedSet¶

Unity-friendly set collections with duplicate detection and custom drawers.

Why Serializable Sets?¶

• Problem: Unity doesn't serialize HashSet<T> or SortedSet<T>
• Solution: SerializableHashSet<T> and SerializableSortedSet<T> maintain a serialized array and runtime set for fast lookups

Basic Usage¶

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15

using UnityEngine;
using WallstopStudios.UnityHelpers.Core.DataStructure.Adapters;

public class UniqueItemTracker : MonoBehaviour
{
    public SerializableHashSet<string> collectedItems;

    private void Start()
    {
        foreach (var item in collectedItems)
        {
            Debug.Log($"Found item: {item}");
        }
    }
}

Visual Reference

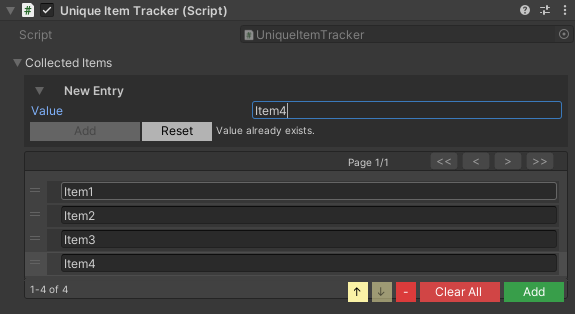

Set inspector with add/remove controls, duplicate highlighting, and pagination

Inspector Features¶

Custom Drawer:

• Reorderable list
• Add/Remove/Clear/Sort buttons
• Duplicate detection with visual highlighting (shake animation + color)
• Null entry highlighting (red background)
• Pagination for large sets
• Move Up/Down buttons
• Current selection badge for items on other pages
• New Entry foldout to stage values before adding them to the runtime set (tune its animation via Project Settings ▸ Wallstop Studios ▸ Unity Helpers ▸ Set Foldouts)

Visual Reference

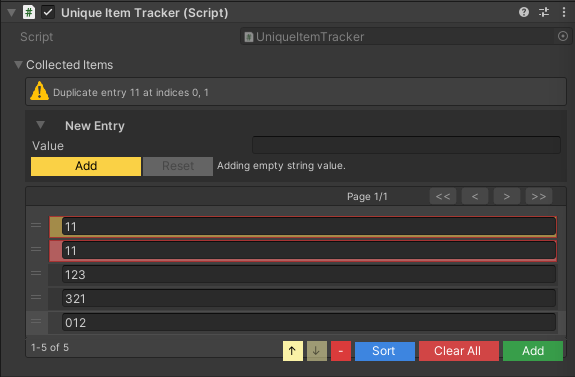

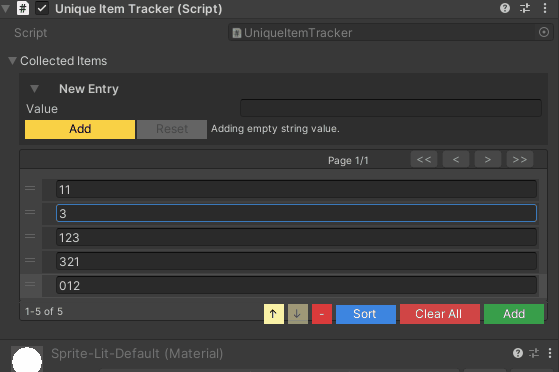

Visual feedback for duplicate entries (yellow shake) and null values (red background)

Set Operations¶

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26

// Implements ISet<T> and IReadOnlyCollection<T>
SerializableHashSet<int> set = new();

// Add (returns true if new)
bool added = set.Add(42);

// Read
bool contains = set.Contains(42);
int count = set.Count;

// Remove
bool removed = set.Remove(42);
set.Clear();

// Set operations
HashSet<int> other = new HashSet<int> { 1, 2, 3 };
set.UnionWith(other);        // Add all from other
set.IntersectWith(other);    // Keep only common elements
set.ExceptWith(other);       // Remove elements in other
bool overlaps = set.Overlaps(other);

// Iteration
foreach (int item in set)
{
    Debug.Log(item);
}

New Entry Foldout¶

Expandable "New Entry" controls let you configure the exact value that will be inserted, which is especially helpful for complex structs, managed references, or ScriptableObjects. The foldout supports the same field variety as the inline list and respects your duplicate/null validation. Animation for the New Entry foldout is governed by the Serializable Set Foldouts settings; adjust tweening and speed independently for SerializableHashSet<T> and SerializableSortedSet<T>.

Foldout Defaults & Overrides¶

By default, SerializableSet inspectors start collapsed until you open them. This baseline comes from Project Settings ▸ Wallstop Studios ▸ Unity Helpers via the Serializable Set Start Collapsed toggle (and the equivalent Serializable Dictionary Start Collapsed toggle for dictionaries). You can override the default per-field with [WSerializableCollectionFoldout]:

1
2
3
4

using WallstopStudios.UnityHelpers.Core.Attributes;

[WSerializableCollectionFoldout(WSerializableCollectionFoldoutBehavior.StartExpanded)]
public SerializableHashSet<string> unlockedBadges = new();

• Project setting establishes the initial state only.
• [WSerializableCollectionFoldout] can request expanded or collapsed behavior for specific collections.
• Explicit changes to SerializedProperty.isExpanded (scripts, custom inspectors, or tests) take ultimate precedence. The drawer now respects those manual decisions, so opting-in via code no longer gets undone by the attribute or the global default.

The attribute applies to both SerializableHashSet<T>/SerializableSortedSet<T> and the dictionary equivalents, making it straightforward to mix project-wide defaults with per-field intentions.

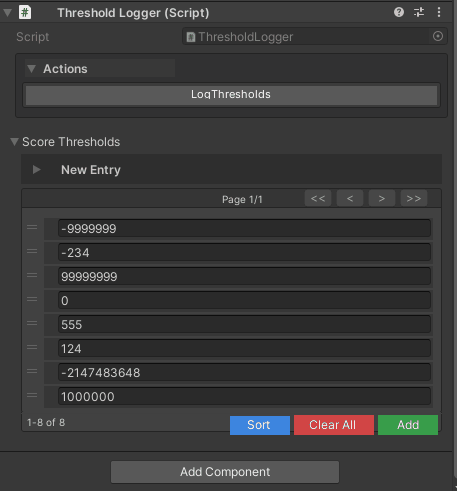

Sorted Sets¶

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18

using UnityEngine;
using WallstopStudios.UnityHelpers.Core.Attributes;
using WallstopStudios.UnityHelpers.Core.DataStructure.Adapters;

public class ThresholdLogger : MonoBehaviour
{
    public SerializableSortedSet<int> scoreThresholds = new();

    [WButton]
    private string LogThresholds()
    {
        foreach (int threshold in scoreThresholds)
        {
            Debug.Log(threshold);
        }
        return $"Logged {scoreThresholds.Count} thresholds";
    }
}

Serialization Support¶

• Unity: Serialized _items array
• JSON: Array format
• Protobuf: Supported via collection surrogates

1
2
3
4

// JSON example
{
    "collectedItems": ["item_001", "item_042", "item_137"]
}

SerializableType¶

Unity-friendly type reference that survives refactoring and namespace changes.

1
2
3
4
5
6
7

using UnityEngine;
using WallstopStudios.UnityHelpers.Core.DataStructure.Adapters;

public class SerializableTypeExample : MonoBehaviour
{
    public SerializableType type;
}

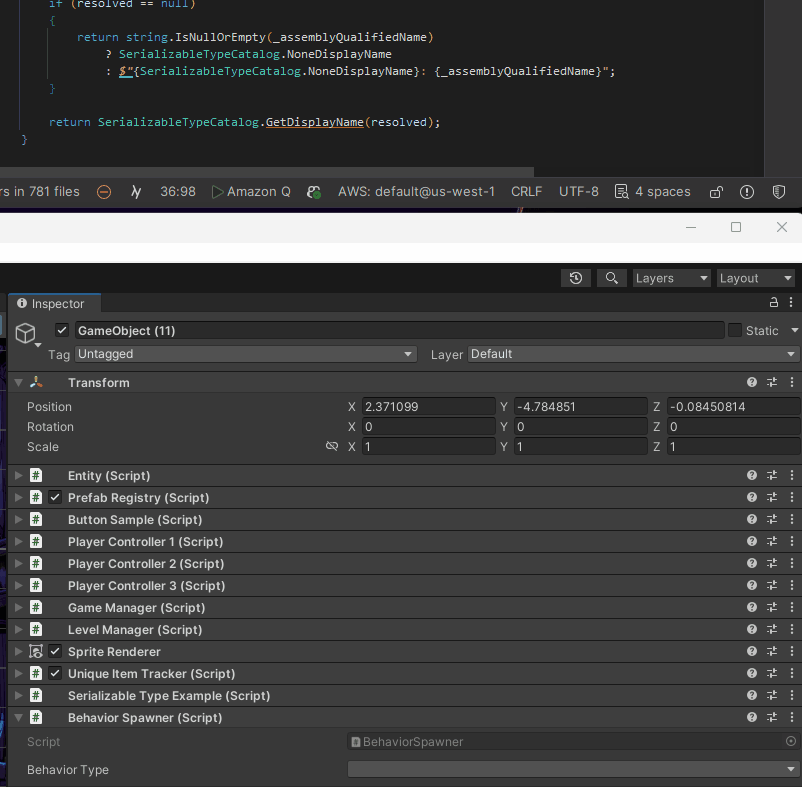

Visual Reference

Type selection with searchable dropdown, namespace filtering, and validation

Why SerializableType?¶

• Problem: Unity doesn't serialize System.Type, and type names break when refactoring
• Solution: SerializableType stores assembly-qualified names with fallback resolution on rename/namespace changes

Basic Usage¶

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36

using System;
using System.Collections.Generic;
using System.Linq;
using UnityEngine;
using WallstopStudios.UnityHelpers.Core.Attributes;
using WallstopStudios.UnityHelpers.Core.DataStructure.Adapters;
using WallstopStudios.UnityHelpers.Core.Helper;

public class BehaviorSpawner : MonoBehaviour
{
    [WValueDropDown(typeof(BehaviorSpawner), nameof(GetAllMonoBehaviourNames))]
    public SerializableType behaviorType;

    private void SpawnBehavior()
    {
        if (behaviorType.IsEmpty)
        {
            Debug.LogWarning("No behavior type assigned!");
            return;
        }

        Type type = behaviorType.Value;
        if (type != null)
        {
            GameObject go = new GameObject(type.Name);
            go.AddComponent(type);
        }
    }

    private static IEnumerable<Type> GetAllMonoBehaviourNames()
    {
        return ReflectionHelpers
            .GetAllLoadedTypes()
            .Where(type => typeof(MonoBehaviour).IsAssignableFrom(type) && !type.IsAbstract);
    }
}

Inspector Features¶

Custom Drawer (Two-Line):

• Search row: Text field for filtering types
• Popup row: Dropdown showing matched types
• Clear button to unset the type
• Pagination for large type catalogs
• Auto-complete suggestions

Search result caching. SerializableTypeCatalog.GetFilteredDescriptors caches its answer per search term, and reuses a shorter term's result as the starting set for a longer one, so typing a name does not rescan the whole catalog on every keystroke. The cache holds at most SerializableTypeCatalog.MaxCachedFilterResults terms (default 64) and evicts the least recently used one past that -- each entry is a filtered slice of every type in the project, and the shortest terms are the largest, so an unbounded cache retained one array per prefix of everything ever typed (#694). Eviction only costs a wider rescan; the results are identical. Set it to 0 or less to remove the bound. Changing the property resizes the live shared Cache<string, SerializableTypeDescriptor[]>; shrinking evicts least-recently-used results immediately.

Ignore-pattern match counts are computed only when the Unity Helpers settings window displays them. Normal editor startup and domain reloads apply the patterns without scanning every loaded type for counts that are not visible.

Type Operations¶

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18

public sealed class PlayerController : MonoBehaviour { }

// Create
SerializableType typeRef = new SerializableType(typeof(PlayerController));

// Resolve
Type resolvedType = typeRef.Value;
if (resolvedType != null)
{
    object instance = Activator.CreateInstance(resolvedType);
}

// Check
bool isEmpty = typeRef.IsEmpty;
string displayName = typeRef.DisplayName;  // User-friendly name

// Equality
bool equal = typeRef.Equals(new SerializableType(typeof(PlayerController)));

Refactoring Resilience¶

Scenario: You rename PlayerController to PlayerBehavior or move it to a new namespace.

• Standard Approach: Type reference breaks, data loss
• SerializableType: Automatically resolves via assembly scanning and fallback matching

How it works:

1. Stores assembly-qualified name (e.g., Namespace.PlayerController, Assembly-CSharp)
2. On deserialization, tries exact match first
3. If the exact match fails, it scans assemblies for the best partial match
4. Updates internal name if resolved to the new type

Serialization Support¶

• Unity: Stores assembly-qualified name string
• JSON: Type name string with custom converter
• Protobuf: Supported via string surrogates

1
2
3
4

// JSON example
{
    "behaviorType": "MyNamespace.PlayerController, Assembly-CSharp"
}

SerializableNullable¶

Unity-friendly nullable value type wrapper.

Why SerializableNullable?¶

• Problem: Unity doesn't serialize Nullable<T> (e.g., int?, float?)
• Solution: SerializableNullable<T> wraps any value type with HasValue and Value properties

Basic Usage¶

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16

using UnityEngine;
using WallstopStudios.UnityHelpers.Core.DataStructure.Adapters;

public class BonusConfig : MonoBehaviour
{
    public SerializableNullable<float> criticalHitMultiplier;

    private float GetDamage(float baseDamage, bool isCritical)
    {
        if (isCritical && criticalHitMultiplier.HasValue)
        {
            return baseDamage * criticalHitMultiplier.Value;
        }
        return baseDamage;
    }
}

Inspector Features¶

Custom Drawer:

• Checkbox for HasValue state
• Inline value field (enabled when HasValue == true)
• Height adapts based on the nullable state

Nullable Operations¶

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18

// Create with value
SerializableNullable<int> nullableInt = new SerializableNullable<int>(42);

// Create without value (null)
SerializableNullable<int> nullInt = new SerializableNullable<int>();

// Check
if (nullableInt.HasValue)
{
    int value = nullableInt.Value;
    Debug.Log($"Value: {value}");
}

// Implicit conversion from T
SerializableNullable<float> nullableFloat = 3.14f;

// Conversion to Nullable<T>
int? systemNullable = nullableInt.HasValue ? nullableInt.Value : null;

Use Cases¶

Optional Configuration:

1

public SerializableNullable<float> overrideSpeed;  // null = use default

Conditional Bonuses:

1

public SerializableNullable<int> bonusGold;  // null = no bonus

Dynamic Properties:

1

public SerializableNullable<Color> customColor;  // null = use preset

Serialization Support¶

• Unity: Stores _hasValue bool and _value T fields
• JSON: Standard nullable format
• Protobuf: Supported via nullable surrogates

1
2
3
4
5
6
7
8
9

// JSON example (has value)
{
    "criticalHitMultiplier": 2.5
}

// JSON example (null)
{
    "criticalHitMultiplier": null
}

SerializableValueTuple¶

Unity-friendly stand-in for ValueTuple, in two- and three-component forms.

Why SerializableValueTuple?¶

• Problem: Unity does not serialize (int, float), and it fails silently. There is no SerializedProperty for the field at all, so a tuple inside a SerializableDictionary or a List<T> loses whatever you authored with nothing to report it. [Serializable] on the type is not the obstacle (ValueTuple<,> already carries it); Unity declines every type out of the framework assemblies.
• And it is worse in a player. Serializer.ProtoSerialize((7, 1.5f)) and Serializer.JsonStringify((7, 1.5f)) both work in the editor and both throw ExecutionEngineException on an IL2CPP standalone build: protobuf-net's StructValueChecker<ValueTuple<int, float>> and System.Text.Json's ObjectDefaultConverter<ValueTuple<int, float>> are instantiated reflectively, so no AOT code is generated for them. Measured on Unity 2021.3. A tuple therefore looks serializable right up until you ship.
• Solution: SerializableValueTuple<T1, T2> and SerializableValueTuple<T1, T2, T3>: the same components under a name Unity will serialize, with implicit conversions in both directions so (T1, T2) stays the spelling everywhere else.

Basic Usage¶

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14

using UnityEngine;
using WallstopStudios.UnityHelpers.Core.DataStructure.Adapters;

public class LootTable : MonoBehaviour
{
    // Authored in the Inspector, and it survives a domain reload.
    public SerializableDictionary<string, SerializableValueTuple<int, float>> drops = new();

    public void Grant(string id)
    {
        (int count, float weight) = drops[id];
        Debug.Log($"{count} at {weight}");
    }
}

Interchangeable with ValueTuple¶

The field names and numbers are ValueTuple's own, so payloads written with either read back through the other: an existing save migrates without a rewrite:

1
2
3

byte[] written = Serializer.ProtoSerialize((7, 1.5f));
SerializableValueTuple<int, float> read =
    Serializer.ProtoDeserialize<SerializableValueTuple<int, float>>(written);   // (7, 1.5)

Verified byte-identical for protobuf (0807150000C03F either way) and character-identical for JSON ({"Item1":7,"Item2":1.5}).

Both directions work in a player for protobuf, so an existing save migrates either way.

Tuples serialize on IL2CPP¶

You do not have to adopt the stand-in to fix protobuf. The package ships

1
2

[assembly: WProtoRootMarshal(typeof(ValueTuple<,>), typeof(ValueTupleMarshalFormatter<,>))]
[assembly: WProtoRootMarshal(typeof(ValueTuple<, ,>), typeof(ValueTupleMarshalFormatter<, ,>))]

so the generator emits an ahead-of-time formatter for every closed ValueTuple your build actually uses, and Serializer.ProtoSerialize((7, 1.5f)) goes through it instead of protobuf-net's reflection. The bytes are SerializableValueTuple's by construction, so the tuple and the stand-in cannot drift apart. Protobuf only; see the JSON caveat above.

The stand-in is still what you need for a serialized field, because that is Unity's own serializer rather than ours.

Turning it off¶

Define WALLSTOP_DISABLE_VALUE_TUPLE_SERIALIZATION in Player Settings → Scripting Define Symbols to remove both. It is on by default because a tuple that throws only in a player is the worst failure this package has to offer, but it is not free: the generator emits one formatter per closed ValueTuple your build uses, and a tuple is a common local aggregate rather than a deliberate container. On this package alone that is 41 registrations, 11 of them closing over types that can never serialize (Type, ConstructorInfo, …). Those decline at run time, but under IL2CPP each closure is still compiled code.

It also silences a second cost. Because the registration is automatic, a tuple that closes over a type the generated registrar cannot name (a private nested type, say) produces a WPROTO028 warning asking you to widen it, for a formatter you never asked for. Two such warnings exist in this package's own tests.

Turning it off does not affect SerializableValueTuple; the stand-in keeps its own converter and its generated formatter either way. Only the automatic support for the raw framework tuple goes.

Conversions¶

1
2
3
4
5
6
7

SerializableValueTuple<int, float> pair = (7, 1.5f);   // implicit, from the framework tuple
(int, float) back = pair;                              // implicit, to it
(int count, float weight) = pair;                      // Deconstruct

pair == new SerializableValueTuple<int, float>(7, 1.5f);   // true
pair.Equals((7, 1.5f));                                    // true
pair.ToString();                                           // "(7, 1.5)"

Equals and GetHashCode use EqualityComparer<T>.Default, so a null component is safe rather than a throw.

Higher arities¶

Only two and three components ship. They cover the gameplay cases ((item, count), (min, max), (x, y, z)), and each additional arity is public API to maintain forever. If you need more, a [Serializable] struct with named fields is clearer at that size anyway.

Best Practices¶

1. Choose the Right Type¶

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27

// ✅ GOOD: WGuid for entity IDs
public WGuid entityId = WGuid.NewGuid();

// ✅ GOOD: SerializableDictionary for key/value mappings
public SerializableDictionary<string, GameObject> prefabRegistry;

// ✅ GOOD: SerializableHashSet for unique collections
public SerializableHashSet<string> uniqueItemIds;

// ✅ GOOD: SerializableSortedSet for ordered unique values
public SerializableSortedSet<int> scoreThresholds;

// ✅ GOOD: SerializableType for type references
public SerializableType behaviorType;

// ✅ GOOD: SerializableNullable for optional values
public SerializableNullable<float> overrideSpeed;

// ❌ BAD: String-based GUID
public string entityId = System.Guid.NewGuid().ToString();  // Use WGuid!

// ❌ BAD: Parallel arrays instead of dictionary
public string[] keys;
public GameObject[] values;  // Use SerializableDictionary!

// ❌ BAD: List with manual duplicate checking
public List<string> uniqueItems;  // Use SerializableHashSet!

2. Initialize Collections¶

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11

// ✅ GOOD: Initialize in field declaration
public SerializableDictionary<string, int> scores = new();
public SerializableHashSet<string> tags = new();

// ❌ BAD: Null collections (NullReferenceException!)
public SerializableDictionary<string, int> scores;  // null!

private void Start()
{
    scores.Add("player", 100);  // Crash!
}

3. Use Sorted Variants for Ordered Data¶

1
2
3
4
5
6
7
8

// ✅ GOOD: SortedSet for ordered priorities
public SerializableSortedSet<int> unlockLevels;

// ✅ GOOD: SortedDictionary for ordered display
public SerializableSortedDictionary<string, string> alphabeticalNames;

// ❌ BAD: HashSet for ordered data (no guaranteed order!)
public SerializableHashSet<int> unlockLevels;  // Order is random!

4. Handle WGuid Generation Carefully¶

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14

// ✅ GOOD: Generate once, then immutable
public WGuid entityId = WGuid.NewGuid();

// ✅ GOOD: Generate in Awake if needed
private void Awake()
{
    if (entityId == WGuid.EmptyGuid)
    {
        entityId = WGuid.NewGuid();
    }
}

// ❌ BAD: Regenerating on every access
public WGuid EntityId => WGuid.NewGuid();  // New GUID every time!

Examples¶

Example 1: Item Database with Dictionary¶

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25

using UnityEngine;
using WallstopStudios.UnityHelpers.Core.DataStructure.Adapters;

[System.Serializable]
public class ItemData
{
    public string name;
    public Sprite icon;
    public int value;
}

public class ItemDatabase : MonoBehaviour
{
    public SerializableDictionary<string, ItemData> items;

    public bool TryGetItem(string itemId, out ItemData data)
    {
        return items.TryGetValue(itemId, out data);
    }

    public void AddItem(string itemId, ItemData data)
    {
        items[itemId] = data;
    }
}

Example 2: Player Achievement Tracking¶

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29

using UnityEngine;
using WallstopStudios.UnityHelpers.Core.DataStructure.Adapters;

public class PlayerProfile : MonoBehaviour
{
    public WGuid playerId = WGuid.NewGuid();
    public SerializableHashSet<string> unlockedAchievements;
    public SerializableSortedSet<int> highScores;

    public void UnlockAchievement(string achievementId)
    {
        if (unlockedAchievements.Add(achievementId))
        {
            Debug.Log($"Unlocked: {achievementId}");
            // Trigger UI notification, etc.
        }
    }

    public void RecordScore(int score)
    {
        highScores.Add(score);

        // Keep only top 10
        while (highScores.Count > 10)
        {
            highScores.Remove(highScores.Min);
        }
    }
}

Example 3: Dynamic Behavior Spawning¶

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49

using UnityEngine;
using WallstopStudios.UnityHelpers.Core.DataStructure.Adapters;
using System;

public class BehaviorFactory : MonoBehaviour
{
    [StringInList(typeof(TypeHelper), nameof(TypeHelper.GetAllMonoBehaviours))]
    public SerializableType defaultBehavior;

    public SerializableDictionary<string, SerializableType> namedBehaviors;

    public GameObject SpawnWithBehavior(string behaviorName = null)
    {
        SerializableType typeToSpawn = defaultBehavior;

        if (!string.IsNullOrEmpty(behaviorName) &&
            namedBehaviors.TryGetValue(behaviorName, out SerializableType namedType))
        {
            typeToSpawn = namedType;
        }

        if (typeToSpawn.IsEmpty)
        {
            Debug.LogWarning("No behavior type specified!");
            return null;
        }

        Type type = typeToSpawn.Value;
        if (type == null || !typeof(MonoBehaviour).IsAssignableFrom(type))
        {
            Debug.LogError($"Invalid behavior type: {typeToSpawn.DisplayName}");
            return null;
        }

        GameObject go = new GameObject(type.Name);
        go.AddComponent(type);
        return go;
    }
}

public static class TypeHelper
{
    public static IEnumerable<Type> GetAllMonoBehaviours()
    {
        return AppDomain.CurrentDomain.GetAssemblies()
            .SelectMany(a => a.GetTypes())
            .Where(t => typeof(MonoBehaviour).IsAssignableFrom(t) && !t.IsAbstract);
    }
}

Example 4: Optional Configuration with Nullable¶

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19

using UnityEngine;
using WallstopStudios.UnityHelpers.Core.DataStructure.Adapters;

public class CharacterConfig : MonoBehaviour
{
    public float baseSpeed = 5f;
    public SerializableNullable<float> speedOverride;  // null = use baseSpeed

    public Color defaultColor = Color.white;
    public SerializableNullable<Color> colorOverride;  // null = use defaultColor

    private void Start()
    {
        float actualSpeed = speedOverride.HasValue ? speedOverride.Value : baseSpeed;
        Color actualColor = colorOverride.HasValue ? colorOverride.Value : defaultColor;

        Debug.Log($"Speed: {actualSpeed}, Color: {actualColor}");
    }
}

See Also¶

• Inspector Overview - Complete inspector features overview
• Serialization Guide - JSON/Protobuf serialization
• Data Structures - Other data structures
• Editor Tools Guide - Editor utilities

Next Steps:

• Replace string/int-based IDs with WGuid
• Use SerializableDictionary instead of parallel arrays
• Track unique collections with SerializableHashSet
• Store type references with SerializableType
• Add optional configuration with SerializableNullable
